Model：KJ-1200X-PGEP

Description：

1.7Mhz Ultrasonic Spray Pyrolysis Furnace-1200C Max. for Synthesis Nanoparticles enables advanced synthetic method that provides control over particle size, morphology, and nano/microstructure.

FEATURES:

The ultrasonic spray furnace system should be designed for versatility for the synthesis of nano core shell structures.

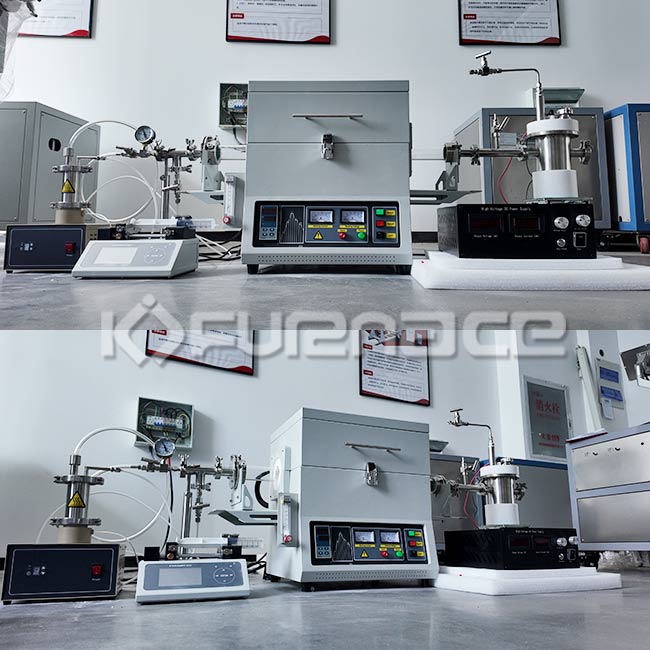

Three major subsystems (ultrasonic enhanced aerosol generator, tube furnace, and electrostatic precipitator) are employed on three processes including aerosol generation, thermal decomposition, and nanoparticle collection. Such a system enables advanced synthetic method that provides control over particle size, morphology, and nano/microstructure.

Technical Paramter:

Part I Aerosol generator
Atomization device:	Equipped with a 1.7MHz ultrasonic atomizer, the liquid can be atomized into liquid particles and introduced into a tube furnace. 20VAC, 1.7MHz ultrasonic atomizer • The liquid tank comes standard with 316 stainless steel,and sealed with a fluorine rubber seal; • Atomization amount can be set from 1 to 8, and the amount of atomization can be controlled by adjusting the size of the gear; • It can realize two functions of continuous operation atomization and regular operation atomization. The timing can be adjusted from 30 minutes to 180 minutes (adjust the gear every 30 minutes).
Liquid injection system	• A standard set of liquid injection pumps for automatic liquid feeding • The syringe pump is equipped with a plastic syringe with a maximum volume of 60ml for holding liquids; • Syringe pump speed adjustment range: 0.004ml / min—70ml / min
Part II Tube Furnace
Structure	Heating section (tube furnace): The maximum temperature of the tube furnace can reach 1200 ° C.
Working voltage & power	Single Phase 220V 50Hz Max. Power 3KW
Contious Working temperature	<= 1100℃
Recommended heating rate	≤10℃/min
Heating Elements	Fe-Cr-Al Alloy doped by Mo
Hot Zone	300mm
Temperature control system	-Digital temperature controller with 30 segments should be programmable for precise control of heating rate, cooling rate and dwell time. -The built-in overtemperature alarm and protection must allow operation at a temperature sensitivity of +/- 1 ºC.
Furnace Tube	Using high-purity quartz tube. Quartz tube size: ID44mmOD50mm . About 1200mm length .
Sealing Flange	The left end is equipped with Water-cooled flange with needle valve and mechanical pressure gauge. The right end is equipped with KF25 interface is directly coupled to the electrostatic precipitator.
Flow Meter	A 0-100 ml/min floating flow meter is included to control the carrier gas flow rate.

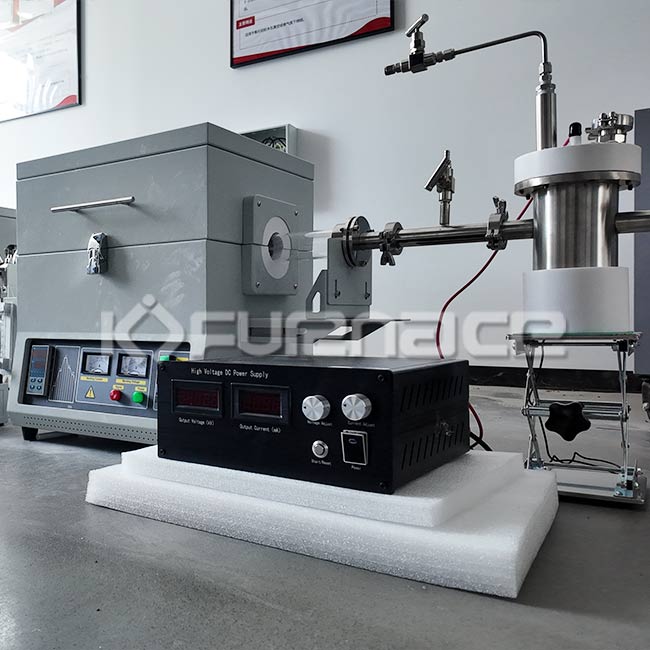

Part III Electrostatic precipitation (precipitation)
High voltage power supply	•Input: 208 ~ 240VAC single phase, maximum power 50W. • Digital display voltage and current value, the maximum output voltage is 30KV, the maximum output current is 1 mA; • Output voltage and current can be set on the front panel and read from the digital display. Constant current/Constant Voltage mode of operation. Built-in Arc protection circuit.
Nano powder collector	•Up to 30 kV and 1 mA. The use of KF25 enables the quick coupling to the furnace processing tube. Adjustable supports keep the collector leveled with the furnace tube.
